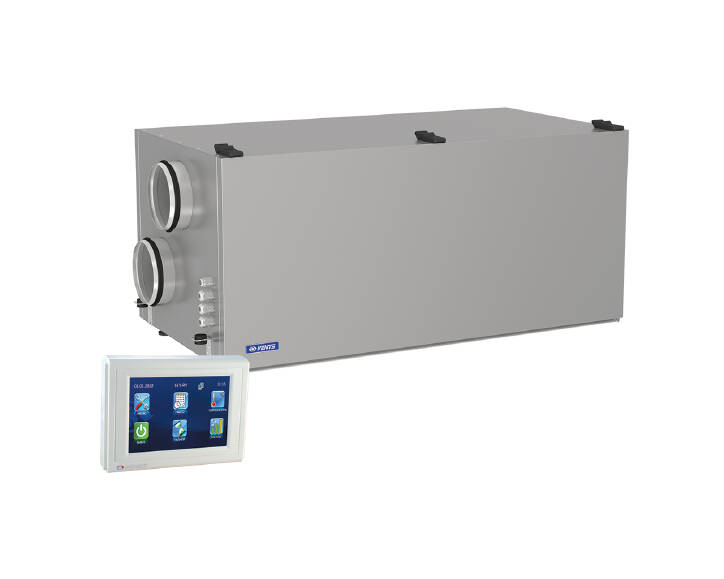

Product description VENTS VUT H EC ECO, VENTS VUT EH EC ECO
Air handling units in heat- and sound-insulated casing. Air capacity up to 940 m3/h, heat recovery efficiency up to 98%.
Available modifications and technical parameters of VENTS VUT H EC ECO, VENTS VUT EH EC ECO
Model VUT 300 H EC ECO VUT 300 EH EC ECO VUT 400 H EC ECO VUT 400 EH EC ECO VUT 900 H EC ECO VUT 900 EH EC ECO Voltage [V / Hz] 1~ 220-240 / 50-60 1~ 220-240 / 50-60 1~ 220-240 / 50-60 1~ 220-240 / 50-60 1~ 220-240 / 50-60 1~ 220-240 / 50-60 Max. unit power without electric heater [W] 138 138 306 306 340 340 Max. unit current without electric heater [A] 0,9 0,9 2 2 2,2 2,2 Integrated electric heater power [kW] - 3 - 3 - 3 Integrated electric heater current [A] - 13 - 13 - 13 Optional electric heater power [kW] 3 - 3 - 3 - Optional electric heater current [A] 13 - 13 - 13 - Max. air capacity [m3/h] 300 300 450 450 940 940 RPM [min-1] 1380 1380 2600 2600 1740 1740 Sound pressure level at 3 m [dBA] 24-45 24-45 28-47 28-47 28-47 28-47 Transported air temperature [°C] from -25 up to +60 from -25 up to +60 from -25 up to +60 from -25 up to +60 from -25 up to +60 from -25 up to +60 Casing material aluzinc aluzinc aluzinc aluzinc aluzinc aluzinc Insulation 25 mm mineral wool 25 mm mineral wool 25 mm mineral wool 25 mm mineral wool 25 mm mineral wool 25 mm mineral wool Filter: extract G4 panel type G4 panel type G4 panel type G4 panel type G4 panel type G4 panel type Filter: supply G4 bag type (F7*) G4 bag type (F7*) G4 bag type (F7*) G4 bag type (F7*) G4 bag type (F7*) G4 bag type (F7*) Connected air duct diameter [mm] Ø160 Ø160 Ø200 Ø200 Ø250 Ø250 Weight [kg] 40 42 45 47 77 80 Heat recovery efficiency 86 up to 98 % 86 up to 98 % 85 up to 98 % 85 up to 98 % 81 up to 98 % 81 up to 98 % Heat exchanger type counter-flow counter-flow counter-flow counter-flow counter-flow counter-flow SEC Class A+ A+ A+ A+ A+ A+ Heat exchanger material aluminium aluminium aluminium aluminium aluminium aluminium *modification
Detailed information on the VENTS VUT H EC ECO, VENTS VUT EH EC ECO at our website.
Description
The air handling units VUT H EC ECO and VUT EH EC ECO are the fully-featured ventilation units that ensure air filtration, fresh air supply and stale air extract.
The sensible heat contained in the extract air is recuperated in the high-efficient plate counter-flow heat exchanger to warm up supply air.
The units are applied as components of ventilation and air conditioning networks for various premises.
Due to high-efficient EC motors and expanded counter-flow heat exchanger surface the energy saving parameters of the ECO series units are the best at the market.
Compatible with round Ø160, 200 and 250 mm air ducts.
Modifications
VENTS VUT H EC ECO model is equipped with a counter-flow heat exchanger, a bypass and EC motors.
VENTS VUT EH EC ECO model is equipped with a counter-flow heat exchanger, a bypass, EC motors and an electric heater.Casing
Made of aluzinc, internally filled with 25 mm mineral wool heat- and sound-insulating layer.
Filter
Supply air flow is purified through a bag filter with G4 filtering class. F7 class filter is available upon separate order. Extract air flow is purified through a panel filter with G4 filtering class.
Fans
High-efficient electronically-commutated motors with external motor.
Such motors are the most state-of-the-art energysaving solution.
EC motors are featured with high performance and total speed controllable range. High efficiency reaching 90% is the premium advantage of the electronically-commutated motors.
The unit sizes 300 and 400 are equipped with constant flow fans with forward curved blades. These fans provide constant set air flow even in case of variable air resistance in the ventilation system, i.e. in case of clogged filters.
The 900 size units are equipped with fans with backward curved blades.
Heat exchanger
High-efficient plate counter-flow polystyrene heat exchanger. The drain pan under the heat exchanger block ensures condensate removal.
Heater
The VUT EH EC ECO units are equipped with an electric heater to enable supply air warming up to set temperature.
The VUT H EC ECO have no built-in electric heater. It is available upon separate order and may be integrated into the unit.
Unit design:
* included into VUT EH EC ECO delivery set. Available for VUT H EC ECO upon separate order.
Bypass
The unit is equipped with a bypass which is automatically opened if there is a need to cool down the ventilated area with cool intake air.
In the unit is equipped with an electric heater the bypass is used for freezing protection of the heat exchanger.
Control and automation
The unit includes an integrated automation and a multifunctional control panel with a sensor graphical display.
The delivery set includes a 10 m connecting cable for connection of the unit to the control panel. The freezing protection function is performed by means of two freeze protection mechanisms:
- If the unit is equipped with an electric heater in case of freezing danger according to the temperature sensor readings the bypass damper is opened to let supply air flow through the bypass duct and not come in contact with the heat exchanger. The heater warms up supply air up to the required temperature and the heat exchanger is heated by the warm extract air. After the heat exchanger defrosting the bypass damper closes the bypass duct and the unit reverts to the standard operation mode.
- If the unit is not equipped with an electric heater in case of freezing danger according to the temperature sensor readings the supply fan is stopped and warm extract air warms up the heat exchanger. After the heat exchanger defrosting and when the freezing danger is no longer imminent the supply fan is restarted and the unit reverts to the standard operation mode.
Control and protection functions
- from the control panel: turning on/off, speed selection, timer, day- and week-scheduled operation, errors;
- maintaining set room or duct air temperature;
- control by HV1 duct humidity sensor (special accessory) or by a built into air duct humidity sensor;
- three fan speed control;
- integrated or optional electric heater control;
- filter clogging control by motor hours.
Mounting
The unit is designed for the suspended or floor mounting. Service access to the unit is on the front panel side.
Application examples:
Specifications
